Maynard Hill World Record Model Airplane Altitude Flight
(October 1963 Model Airplanes News)
Maynard Hill is a name
familiar to just about anyone involved in building and flying model airplanes
from the 1950s through the 1980s. He set many world records, one being flying a
radio controlled model - the Skyrocket - to an altitude of 13,320 feet during a
37-minute flight on July 5, 1963 (extended to 26,990 feet in 1970). He also set
speed, distance, and endurance records. Mr. Hill, a metallurgist by
profession, served as president of the Academy of
Model Aeronautics (1964) during the era this article appeared in a 1965 issue of

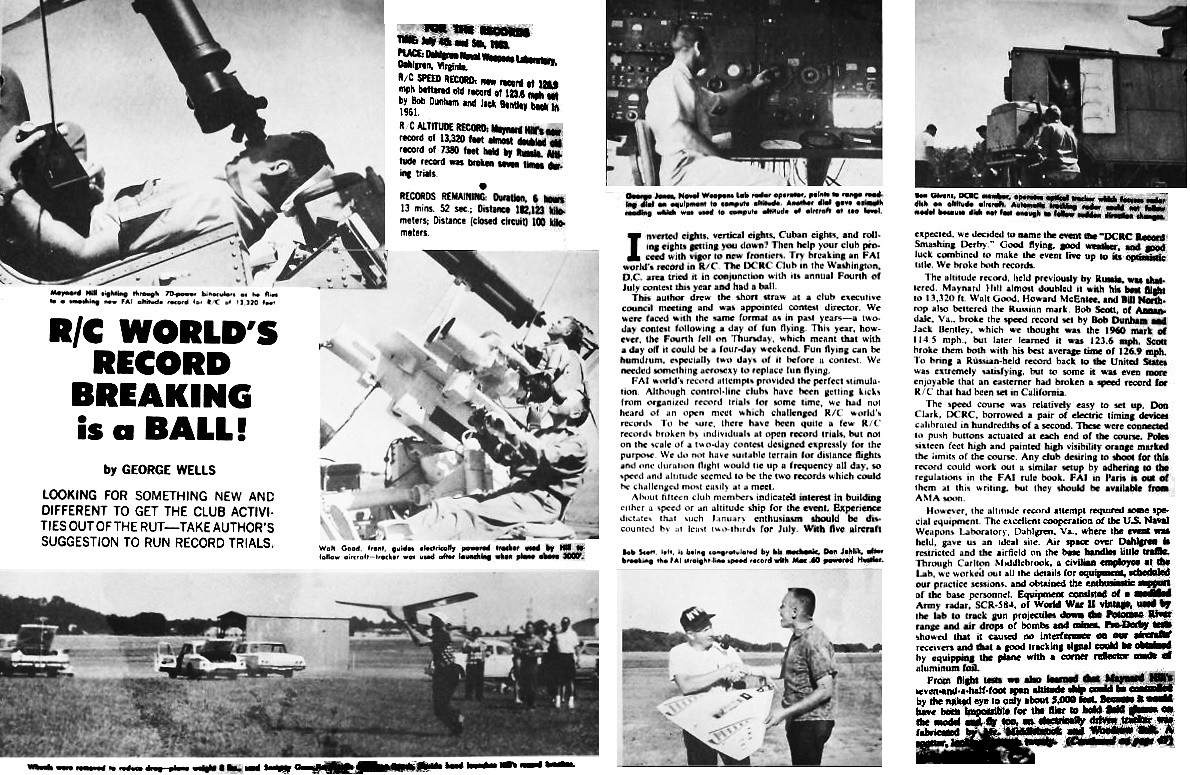

Science and Mechanics magazine. As seen in the Model Airplane News
magazine article to the left, he used a powerful set of military binoculars to
watch the airplane during its flight. In 2003, Maynard Hill became the first to
fly a model airplane, "The
Spirit of Butt's Farm," across the Atlantic Ocean.
Build Skyrocket

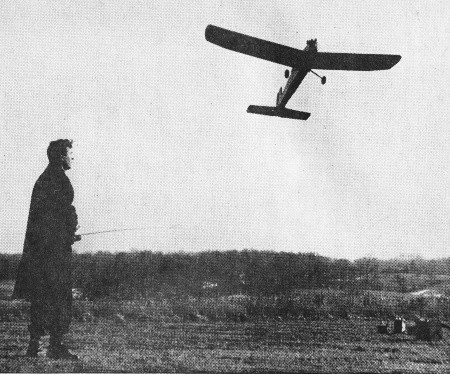

This is the famous RC plane that broke the world's altitude record
by climbing 13,320 feet into the sky!
By Maynard L. Hill
President, Academy of Model Aeronautics
Would you like to set a world's record for radio-controlled aircraft? Skyrocket
is the current holder of the world altitude record, but it hasn't gone its limit
yet! So if you have a yen to try, look this baby over. It's easier to build and
fly than you might think.
The Present Record of 13,320 ft. was set during a 37-minute
flight on July 5, 1963. The model had already broken the old Russian-held record
of 7,380 ft. in two successive flights to 11,960 ft. and 12,980 ft. at Dahlgren,
Virginia, on the previous day, appropriately enough the Fourth of July.
Skyrocket used 14 ounces of fuel during a flight and it was always still climbing
well each time it ran dry. I really believe the plane would go to 16,000 and perhaps
20,000 ft. without any special carburetors or superchargers on about 25 ounces of
fuel.
Fuselage, Rudder and Elevator
Start by building two fuselage sides, one on top of the other using T-pins to
hold them in place.
Proceed using 1/4 x 1/4-inch, 1/4 x 1/2-inch and 1/4 x 1-inch stock as indicated,
but do not install L-1 until later. Allow the assembled sides to dry overnight,
then remove them from the building board and glue the 1/16-inch sheets to the outside
of the structures. These sheets can be held during drying by repinning the glued
assembly to the board. When dry, remove from the board, trim off the excess from
the sheets and sand the two sides to identical shape. Now separate the two sides
where they became glued during assembly.

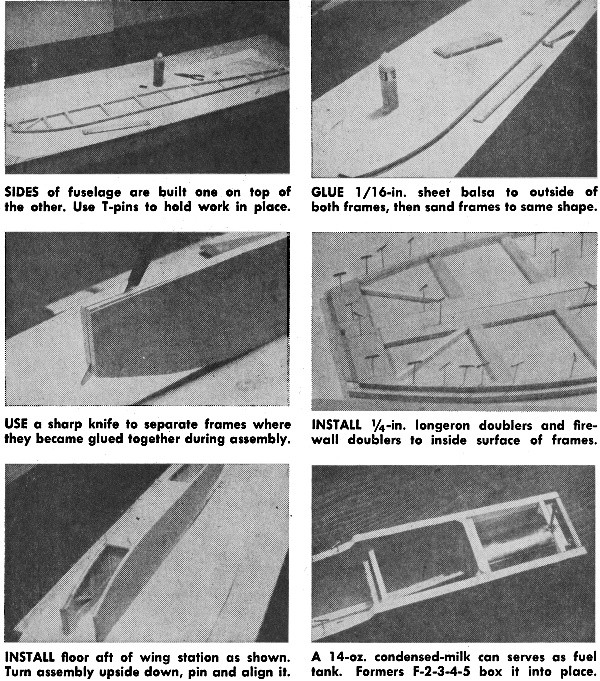

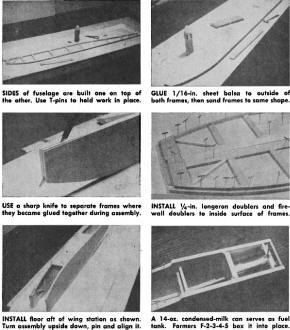

Sides of fuselage are built one on top of the other. Use T-pins
to hold work in place. Use a sharp knife to separate frames where they became glued
together during assembly. Install floor aft of wing station as shown. Turn assembly
upside down, pin and align it. In building Skyrocket use a good grade balsa throughout
except where other materials are specified. If building for altitude or endurance
use the lighter grades of balsa. Double-glue all joints involving pieces cut across
the grain. Put on a coating of glue to seal the grain, then let it dry before re-gluing
and setting a piece in place. Glue 1/16-in. sheet balsa to outside of both frames,
then sand frames to same shape. Install 1/4-in. longeron doublers and fire-wall
doublers to inside surface of frames. A 14-oz. condensed-milk can serves as fuel
tank. Formers F-2-3-4-5 box it into place.

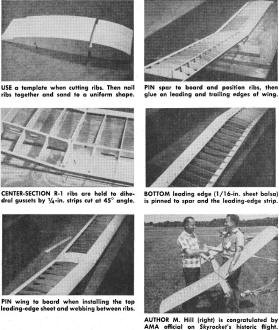

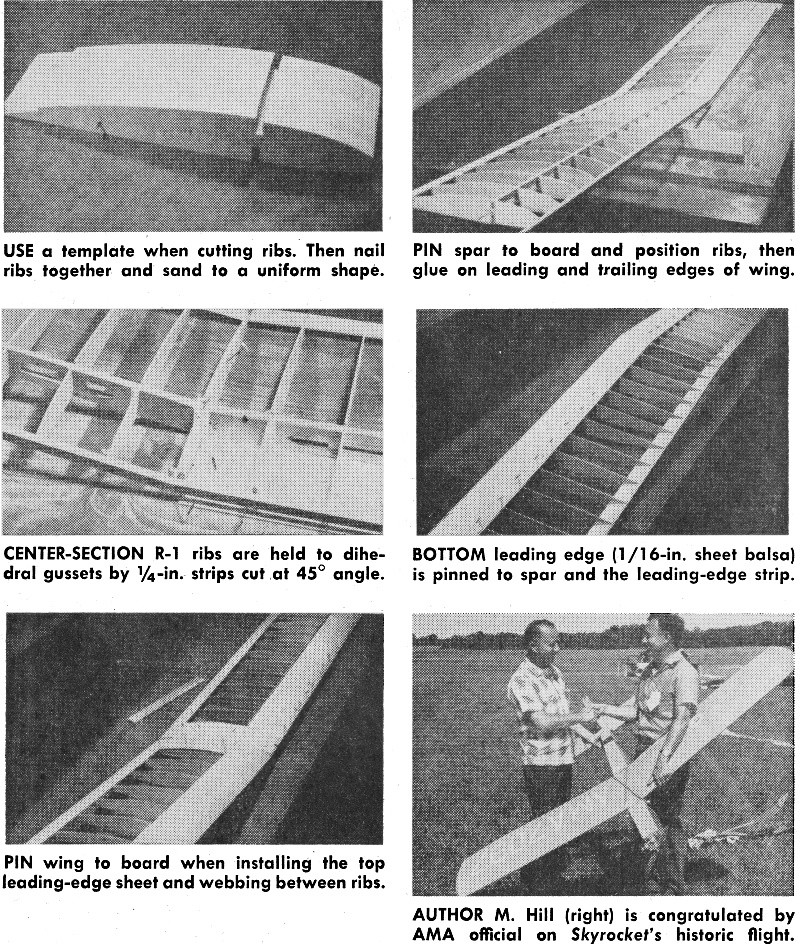

Use a template when cutting ribs. Then nail ribs together and
sand to a uniform shape. Pin spar to board and position ribs, then glue on leading
and trailing edges of wing. Center-Section R-1 ribs are held to dihedral gussets
by 1/4-in. strips cut at 45° angle. Bottom leading edge (1/16-in. sheet balsa) is
pinned to spar and the leading-edge strip. Pin wing to board when installing the
top leading-edge sheet and webbing between ribs. Author M. Hill (right) is congratulated
by AMA official on Skyrocket's historic flight.

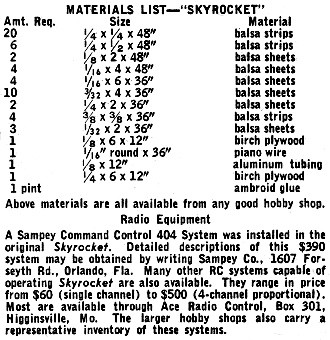

Materials List - "Skyrocket" - Above materials are all available from any good
hobby shop.
The sides are then laid on the building board with the 1/16-inch sheet facing
down while the 1/4 x 1/4-inch firewall shoulders and the bottom 1/4 x 1/4-inch longeron
doublers are installed. When dry, the fuselage sides are joined by gluing formers
F6B and F7 in place along with the part of the 1/4-inch floor that runs aft from
leading edge station.
Install cross members aft of the wing next, being sure the fuselage top view
conforms to the drawing. Then install the firewall to which the nuts for engine
mounting have been previously attached.
The 14-ounce tank shown was made from an empty condensed-milk can, some, 1/8-inch
brass tubing and a bit of solder (or you can buy your tank at a hobby shop). The
tank is held in place by F2, F3, F4 and F5 which are assembled with the tank glued
in place in the fuselage.
Next Install L-1, apply the 1/16-inch sheet top and complete
the 1/4-inch forward floor using 1/4 x 1-inch pieces with the grain running across
the fuselage. Also install the stabilizer incidence shims, and cover the top aft
section and the forward floor with 1/16-inch sheet. Now set this assembly aside
to dry.
Like the fuselage, the elevator and rudder assemblies are built by pinning them
to a board. The stabilizer is made of 1/4 x 1/2-inch and 1/2 x 1/2-inch strips,
and the elevator surface is made of very soft sheet balsa. The hinge is made by
sewing with dacron or nylon thread. The vertical stabilizer (fin) is built up of
3/8 x 3/8-inch and 1/8 x 3/8-inch strips. The rudder is built up of 1/32-inch sheet
and 1/4 x 1/4-inch balsa to allow the hinge pin and tiller bar to be tied with thread
to the vertical post.
The rudder tiller bar is bent at right angles and inserted in its bottom bearing
first. Then the fixed fin is brought down over the rudder to mate with the top rudder
bearing. Glue the fin securely in place. When dry, install the rudder linkage, attach
the elevator with rubber bands and install the elevator linkage. The rudder should
deflect about 20° to 25° left and right and the elevator about 15° up
and 10° down.
Install the antibuckle strips and landing-gear hooks and finish installing 1/16-inch
sheet on the bottom. Also install 1/8-inch doublers in the wing mount area. Sand
corners well, and when dry put on two coats of clear Butyrate dope. Put Celastic
(a plastic which softens when dipped in dope thinner and hardens to a tough film
when dry), or fiber-glass reinforcement over the firewall so that it reaches about
1/2 inch around the sides and top. Also put Celastic patches over the wing and tail
dowel regions. Cover with nylon or silk directly over the sheet balsa and paint
with two more coats of clear dope and the color dope of your choice.
Craft Print Available
Full-size plans for building Skyrocket may be obtained by ordering Craft Print
No. 358. Send check or money order for $5 to:
Craft Print Dept., Science & Mechanics, 505 Park Ave., New York,
N. Y. 10022.
Wing construction. Construction of the wing is simplified by
the use of a flat-bottomed airfoil. First build the spars by pinning them to the
building board. When dry, join them with the dihedral gussets. Now pin one side
of the spars to the plans and slide all R2 ribs onto this side in a vertical position.
Install trailing and leading edge strips and then ribs R1. When dry, remove from
plan and repeat for the other side of the wing. Sand the leading edge strip to contour
and install 1/16-inch sheet to bottom surface.
Now Repin Half the wing to the board and install the top 1/16-inch
sheet and webbing between the ribs. This operation forms the D-tube out of the leading
edge and makes a rigid structure that can later be doped without warping. When thoroughly
dry, repeat the D-tube construction on the other half of the wing. Cut off the triangular
section at the tips of the trailing edge and move it forward as shown. Sand the
three tip ribs to conform to the new trailing edge.
Install the tips and the second leading edge strips. Sand smooth and paint with
two or three coats of clear Butyrate dope and apply a Celastic strip over the center
joint. Cover with silk or nylon.
Covering Is Best Done by using four panels of material, one
each for the top, bottom, right and left sections. Use Butyrate clear dope for cement.
Wet one of the panels with water and stretch it loosely over the structure. Have
a wet sponge handy to keep it damp. Paint through the material along the center
chord-line. Allow it to dry tacky at this end and then stretch the panel span-wise
and attach it to the tip at the other end by painting through the material.
Now paint through the leading and trailing edge areas and stretch the material
chord-wise. Trim excess with a razor blade and repeat on the other panels. Paint
again.
Install the .56 or .59 engine and throttle linkage, then check out all equipment
with the engine off and with it running.
For information on setting up record attempts for model planes, write Academy
of Model Aeronautics, 1025 Connecticut Ave., Washington, D.C.
Radio Equipment
A Sampey Command Control 404 System was installed in the original Skyrocket.
Detailed descriptions of this $390 system may be obtained by writing Sampey Co.,
1607 Forseyth Rd., Orlando, Fla. Many other RC systems capable of operating Skyrocket
are also available. They range in price from $60 (single channel) to $500 (4·channel
proportional). Most are available through Ace Radio Control, Box 301, Higginsville,
Mo. The larger hobby shops also carry a representative inventory of these systems.
Maynard Hill's Altitude Record Setting "Skyrocket" Model Airplanes

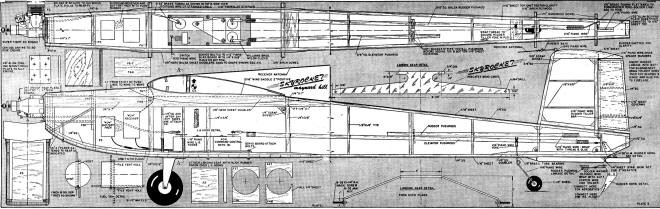

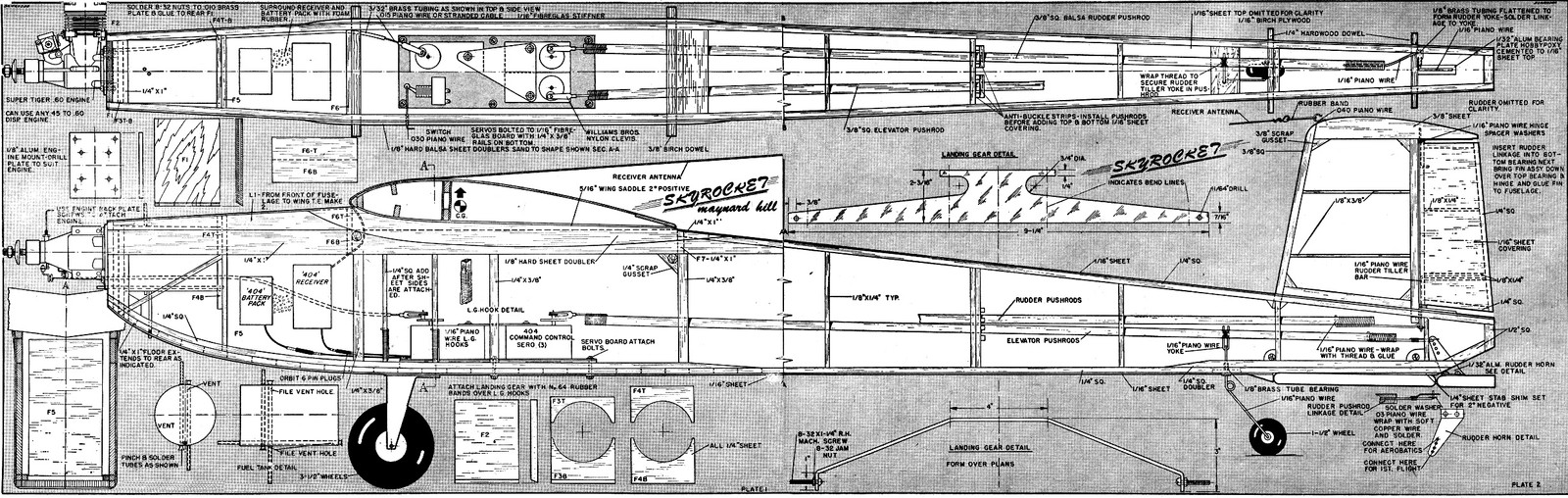

Plans (Fuselage)

Maynard Hill's Altitude Record Setting "Skyrocket" Model Airplanes

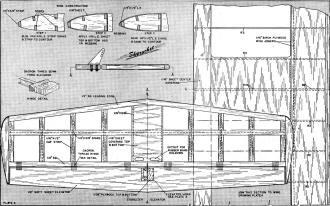

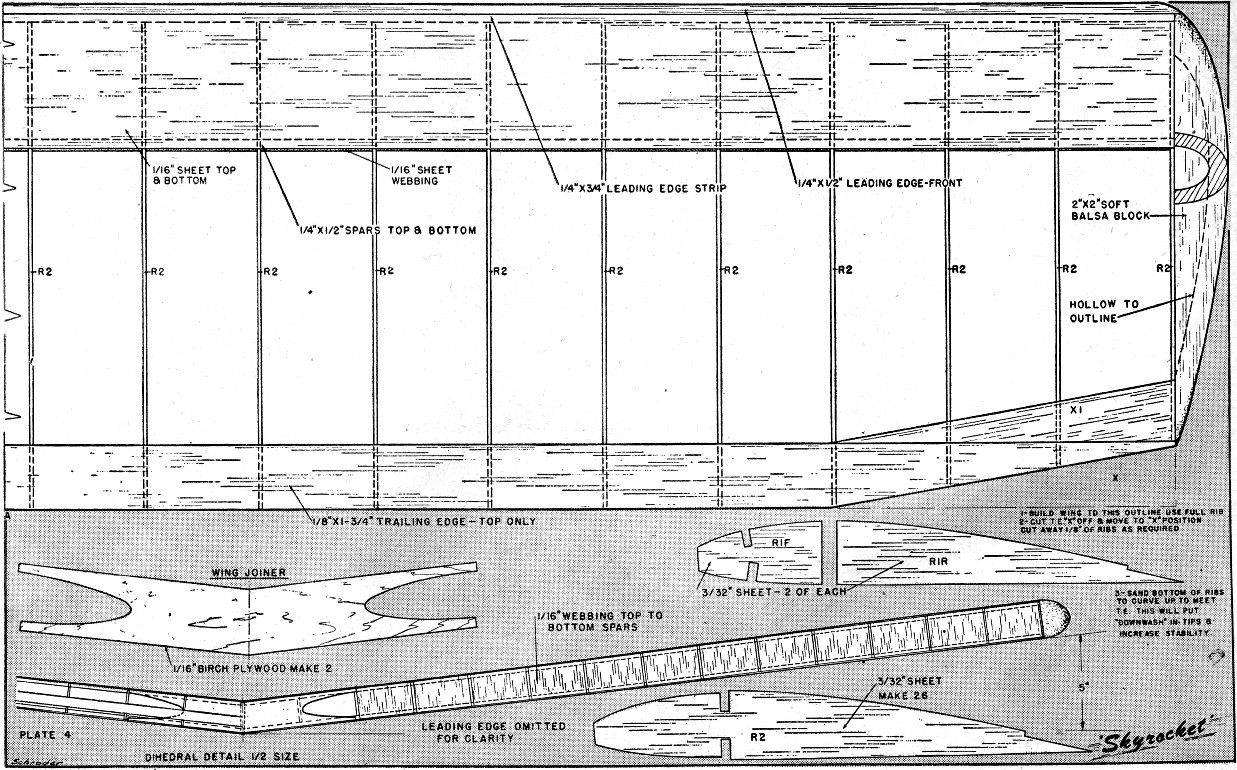

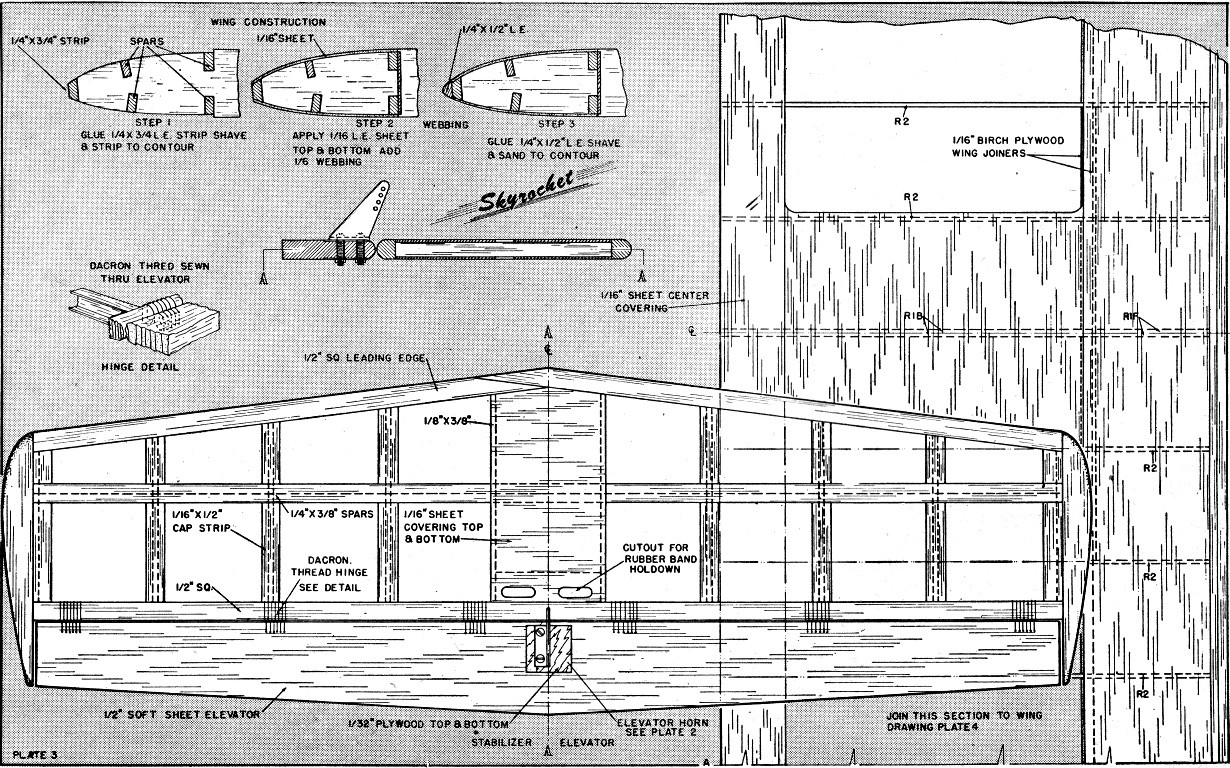

Plans (Wings & Empennage)
