This set of very detailed drawings of the Ryan ST-3, aka Army PT-21, aka Army PT-22, monoplane appeared in the July 1962 edition of American Modeler. I cannot make out the signature to give credit to the fine work. The artist included a lot of information that scale modelers in particular would be interested in such as cockpit materials, instruments, wheel and propeller sizes, etc. It also has a detailed drawing of the main landing gear oleo strut. Tables of the various commercial and military designations are included as well in the set of three drawings.

Ryan ST-3 | Army PT-21 | PT-22  Detailed Views

Ryan ST-3 Starboard Side, Top, Front View - Airplanes and Rockets

Ryan ST-3 Starboard Side, Top, Front View





Ryan ST-3 Port Side, Top, Front View - Airplanes and Rockets

Ryan ST-3 Port Side, Top, Front View

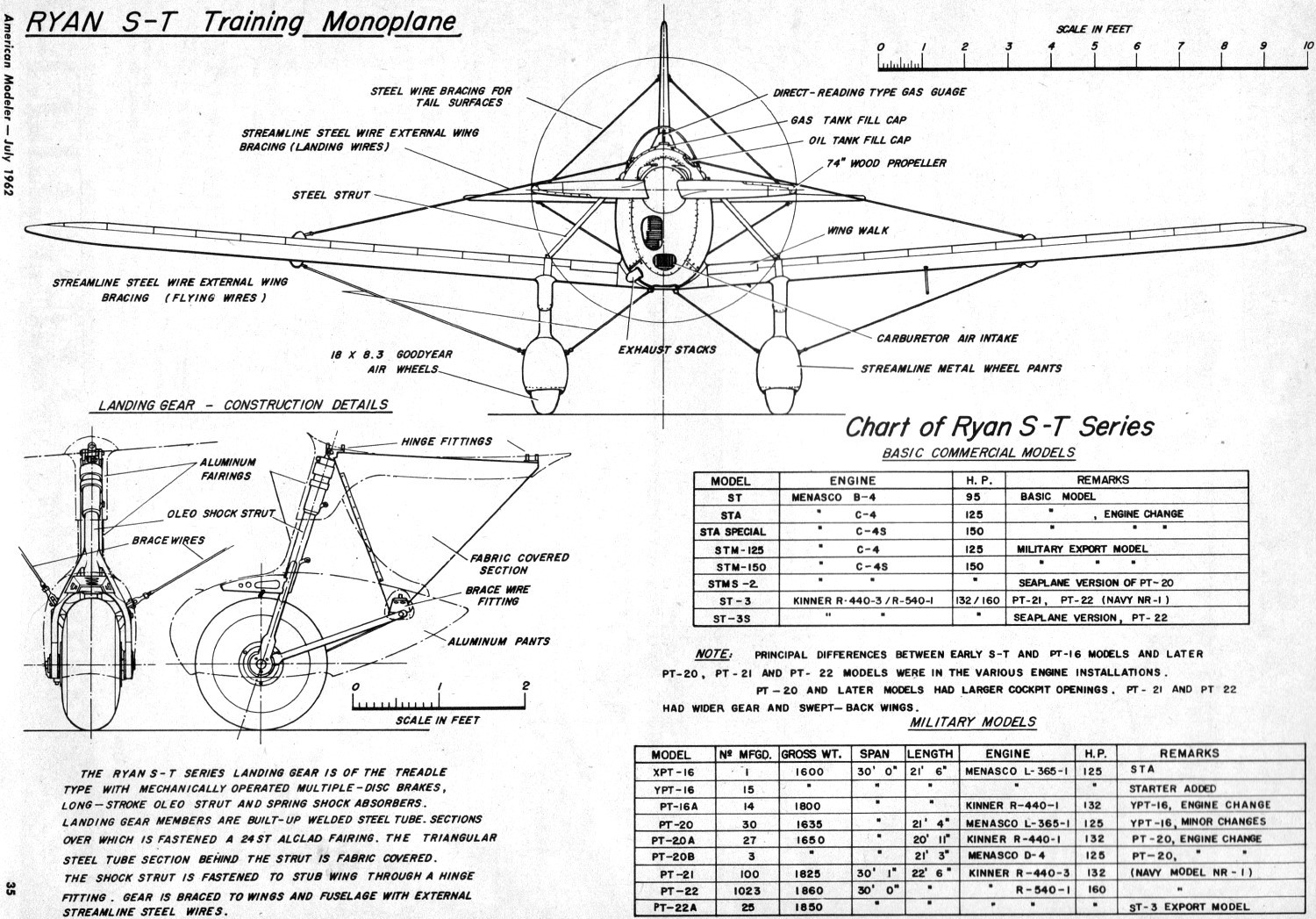

Ryan ST-3  Front View & Landing Gear Detail - Airplanes and Rockets

Ryan ST-3  Front View & Landing Gear Detail

<click for larger version>
